Description

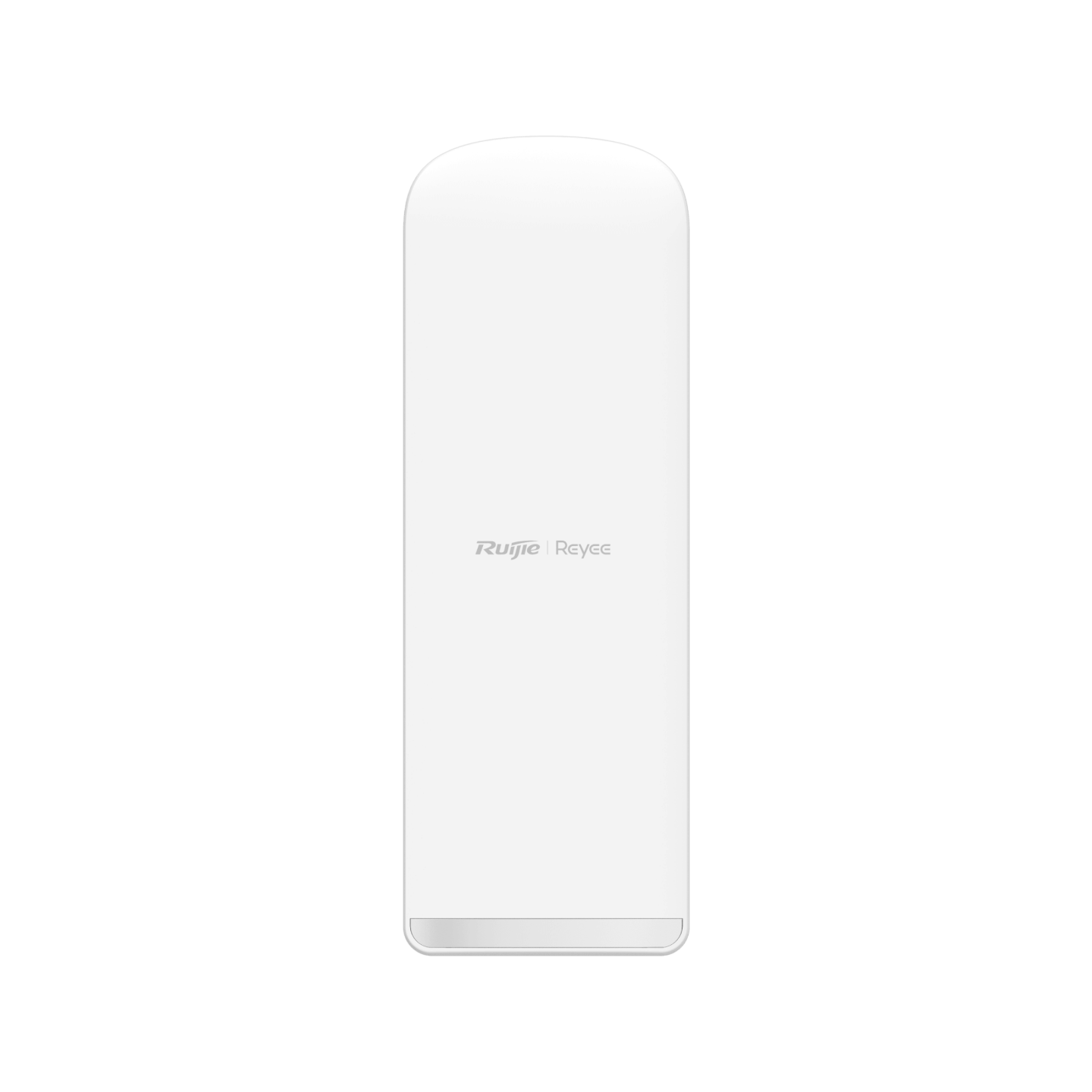

The Ruijie Reyee RG-EST450G is a powerful enterprise-grade outdoor wireless bridge designed for long-range point-to-point (PTP) and point-to-multipoint (PTMP) connectivity across streets, buildings, campuses, factories, farms, warehouses, industrial sites, and surveillance deployments. Built with advanced 5GHz Wi-Fi 5 (802.11ac) technology, the device delivers wireless speeds of up to 867Mbps, ensuring high-speed, stable transmission for CCTV backhaul, outdoor network expansion, and large-scale wireless infrastructure deployment. Its professional-grade design makes it ideal for organizations seeking reliable outdoor connectivity with simplified cloud management.
The device features a dual-radio 3 spatial stream architecture, combining a dedicated 2.4GHz management radio with a high-performance 5GHz transmission radio. This intelligent separation improves signal stability, simplifies monitoring, and ensures consistent wireless performance even in busy outdoor RF environments. Built with a powerful 15dBi directional antenna and a wide 120° horizontal beamwidth, the RG-EST450G offers excellent area coverage for PTMP deployment while maintaining focused signal strength and strong long-distance performance.
For deployment flexibility, the RG-EST450G includes 3 Gigabit Ethernet ports and supports three power input methods: 12V DC, Passive PoE, and IEEE 802.3af/at PoE, making installation easier across diverse networking environments. Its one-touch pairing capability simplifies setup for PTMP deployment, allowing quick bridge pairing without complicated manual configuration. Proprietary TDMA technology improves wireless efficiency and minimizes interference in high-density bridge scenarios.
Built for harsh outdoor operation, the bridge features IP55 weatherproof protection, operates reliably from -30°C to +65°C, and offers excellent durability with a 400,000-hour MTBF rating. Integrated Ruijie Cloud centralized management, AI heatmap tools, spectrum scanning, alignment assistance, and real-time remote monitoring make deployment and maintenance highly efficient for professional installers and network administrators. Community feedback often highlights Reyee products as reliable, affordable alternatives to more expensive enterprise wireless solutions.
| Specification | Details |
|---|---|
| Product Model | RG-EST450G |
| Product Type | Outdoor Wireless Bridge |
| Wireless Standard | IEEE 802.11ac / n |
| Wireless Technology | Wi-Fi 5 |
| Maximum Wireless Speed | 867 Mbps |
| Frequency Bands | 2.4GHz + 5GHz |
| Radio Design | Dual-Radio |
| Spatial Streams | 3 Streams |
| 2.4GHz Radio | 1×1 SISO |
| 5GHz Radio | 2×2 MIMO |
| 5GHz Channel Width | Auto / 20 / 40 / 80 MHz |
| 2.4GHz Channel Width | Auto / 20 / 40 MHz |
| Antenna Type | Built-in Directional |
| Antenna Gain | 15 dBi |
| Horizontal Beamwidth | 120° |
| Vertical Beamwidth | 13° |
| Ethernet Ports | 3 × Gigabit RJ45 |
| Power Input | 12V DC / Passive PoE / IEEE 802.3af/at |
| PoE In Ports | 1 |
| Maximum Power Consumption | ≤12W |
| Pairing Mode | One-Touch Pairing |
| TDMA Support | Yes |
| SON Support | Yes |
| Cloud Management | Supported |
| AI Heatmap | Supported |
| Spectrum Scan | Supported |
| Bridge Alignment Tool | Supported |
| Remote Monitoring | Supported |
| Bridge Speed Test | Supported |
| SNMP Support | v1 / v2c / v3 |
| Protection Rating | IP55 |
| Operating Temperature | -30°C to +65°C |
| Operating Humidity | 5%–95% RH |
| MTBF | 400,000 Hours |
| Dimensions | 124 × 48 × 355 mm |
| Mounting Type | Pole / Wall Mount |
| Certification | CE / FCC / RoHS |
