Description

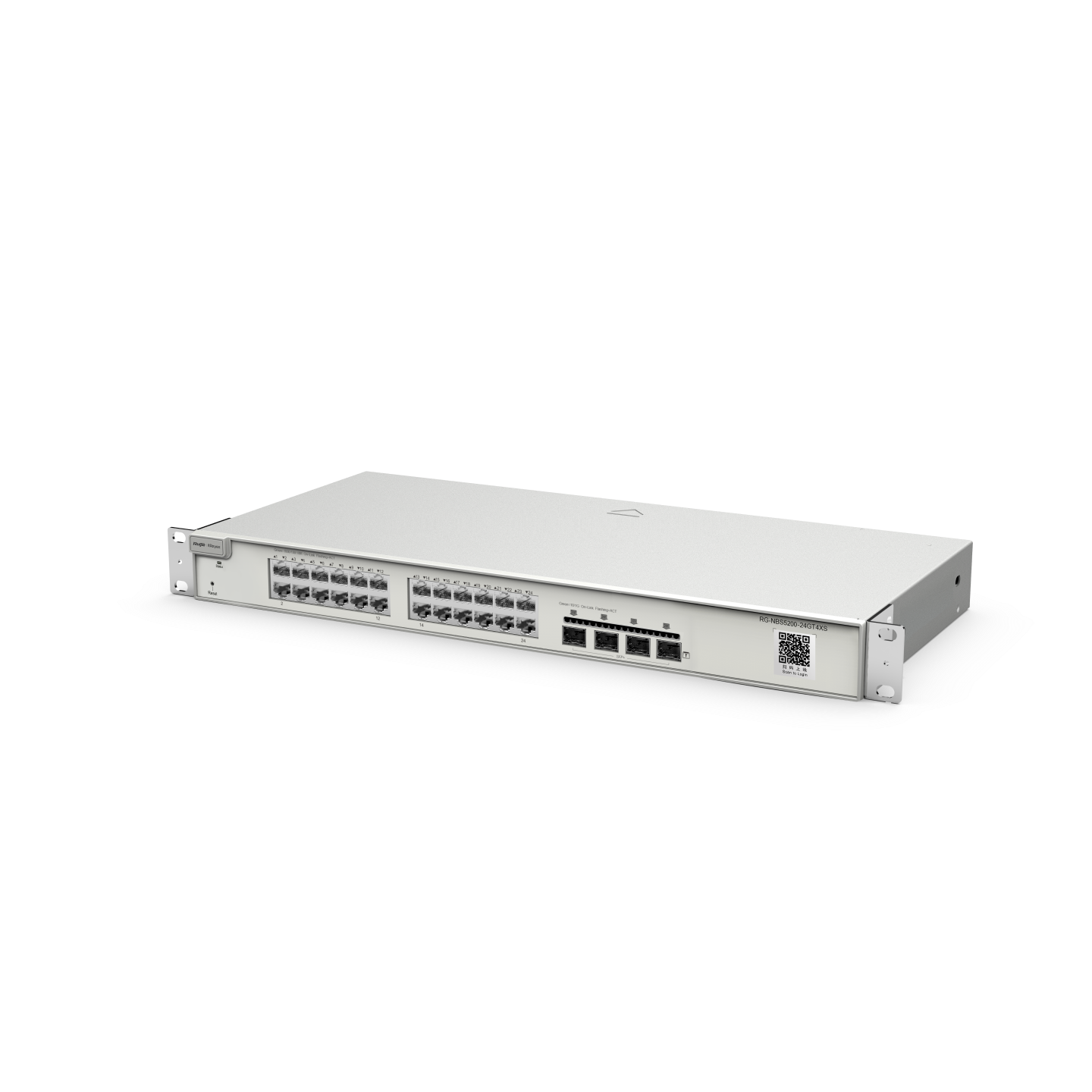

The Ruijie Reyee RG-NBS5200-24GT4XS is a powerful enterprise-grade Layer 3 cloud-managed non-PoE switch built for large business networks, enterprise offices, educational campuses, hospitality environments, data centers, branch office aggregation, and high-performance backbone deployments. Designed for next-generation business networking, it delivers high-speed Gigabit switching, ultra-fast 10G fiber uplinks, advanced Layer 3 routing intelligence, and centralized cloud-based management, making it an ideal core switching solution for modern enterprise infrastructures.
The switch is equipped with 24 Gigabit RJ45 Ethernet ports and 4 dedicated 10G SFP+ uplink ports, enabling flexible connectivity for desktop systems, servers, storage devices, wireless access points, aggregation switches, and high-speed backbone fiber expansion. The 10G uplink architecture eliminates traffic bottlenecks, ensuring ultra-fast communication across high-density enterprise environments and improving overall network efficiency.
Powered by enterprise-level hardware architecture, the RG-NBS5200-24GT4XS delivers 128 Gbps switching capacity and 96 Mpps packet forwarding performance, ensuring smooth traffic forwarding, ultra-low latency, and consistent reliability even during bandwidth-intensive workloads such as centralized storage access, HD surveillance traffic, cloud applications, and virtualization environments.
The switch supports advanced Layer 3 intelligent networking features, including static routing, RIP, OSPF dynamic routing, VLAN segmentation, ACL security filtering, DHCP snooping, QoS prioritization, 802.1X authentication, multicast optimization, LACP aggregation, STP/RSTP redundancy, and jumbo frame forwarding, ensuring secure traffic isolation, efficient routing, and optimized network performance for mission-critical deployments.
Integrated with Ruijie Reyee Cloud Management, administrators can remotely deploy, configure, monitor, troubleshoot, update firmware, and visualize network topology from anywhere using the Reyee cloud dashboard or mobile app. This centralized management platform reduces maintenance overhead and simplifies large-scale professional deployment operations.
Built with 6kV surge protection, industrial-grade metal construction, intelligent airflow cooling, high MTBF reliability, and 24/7 operational durability, the RG-NBS5200-24GT4XS ensures long-term stable performance in professional enterprise networking environments.
| Specification | Details |
|---|---|
| Product Model | RG-NBS5200-24GT4XS |
| Product Type | Layer 3 Cloud Managed Non-PoE Switch |
| RJ45 Ports | 24 × 10/100/1000 Mbps |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Support | No |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K Entries |
| Flash Memory | 256MB |
| RAM | 512MB |
| Maximum VLANs | 4094 |
| Layer Support | Layer 3 |
| Routing Protocols | Static Routing / RIP / OSPF |
| QoS Support | 802.1p / DSCP |
| ACL Security | Supported |
| 802.1X Authentication | Supported |
| DHCP Snooping | Supported |
| Link Aggregation | Static LAG / LACP |
| Multicast Support | IGMP Snooping v1/v2 |
| Redundancy Protocols | STP / RSTP |
| Jumbo Frame | 9216 Bytes |
| Surge Protection | 6kV |
| Cloud Management | Reyee Cloud / App / Web / SNMP |
| Cooling System | Single Intelligent Fan |
| Power Supply | AC 100–240V |
| Maximum Power Consumption | 28W |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 × 207.5 × 43.6 mm |
| Weight | 2.9 kg |
| Mounting Type | Standard 1U Rack Mount |
| MTBF | 400,000 Hours |
| Warranty | 5 Years |
