Description

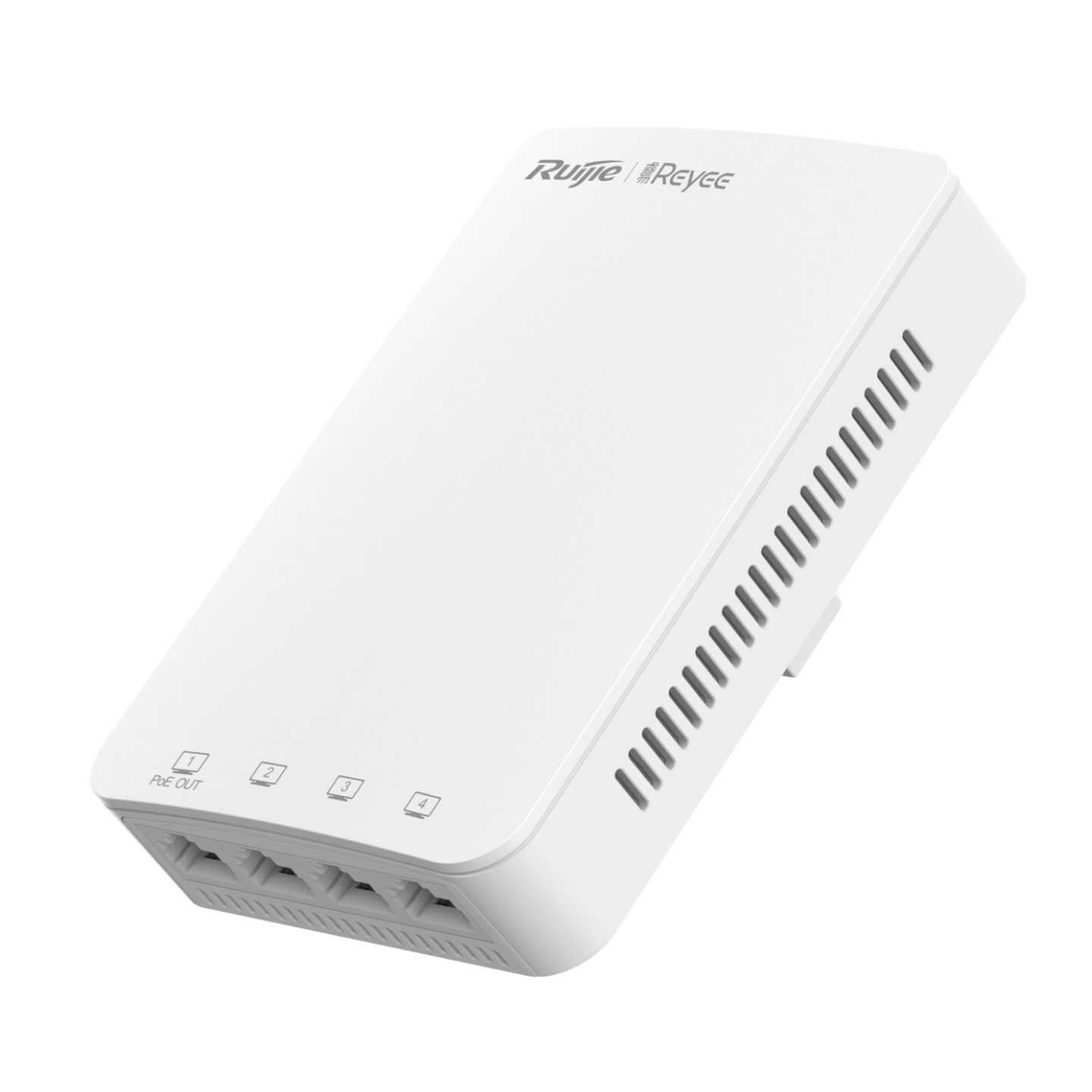

The Ruijie Reyee RG-RAP1200(P) is a high-performance Wi-Fi 5 (802.11ac Wave 2) wall-mounted access point designed for hotels, apartments, offices, dormitories, and enterprise indoor networking environments. It delivers a total combined wireless speed of up to 1267Mbps, ensuring stable and smooth connectivity for multiple users and devices at the same time. The device is specially designed for room-level deployment, making it ideal for hospitality and commercial indoor networking scenarios where reliable coverage and multiple wired connections are required.
This model supports dual-band 2.4GHz and 5GHz operation with 2×2 MU-MIMO technology, enabling efficient multi-user communication and reducing network congestion in busy environments. With a smart wall-plate design, it blends seamlessly into modern interiors while providing strong wireless coverage and multiple Ethernet ports for wired device connectivity such as IP phones, IPTV, and PCs.
The RG-RAP1200(P) also supports cloud-based management via Ruijie Reyee Cloud, allowing centralized monitoring, configuration, and maintenance without needing a local controller. It offers multiple operating modes including Access Point, Mesh, and Repeater, making it flexible for different deployment requirements.
With PoE input and PoE output support, the device can power additional network devices directly, reducing installation complexity and cabling cost. Its compact design, strong performance, and enterprise features make it a reliable choice for modern smart building and hospitality Wi-Fi solutions.
| Specification | Details |
|---|---|
| Product Model | RG-RAP1200(P) |
| Product Type | Wall Plate Access Point |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 (Wi-Fi 5) |
| Wireless Technology | Dual-band MU-MIMO |
| Maximum Wireless Speed | Up to 1267 Mbps |
| 2.4GHz Speed | 400 Mbps |
| 5GHz Speed | 867 Mbps |
| MIMO Technology | 2×2 MU-MIMO |
| Radio Design | Dual-radio |
| Antenna Type | Built-in antennas |
| Ethernet Ports | 4 × Gigabit LAN + 1 × uplink |
| PoE Support | IEEE 802.3af/at |
| PoE Out | Supported (LAN port) |
| Maximum Power Consumption | ≤ 8W |
| Maximum Clients | Up to ~110 users |
| Operating Modes | AP / Mesh / Repeater |
| Cloud Management | Supported |
| Roaming Support | Layer 3 roaming |
| Mounting Type | Wall Plate |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 126 × 86 × 50 mm |
| Weight | ~0.24 kg |
