Description
The Ruijie Reyee RG-RAP62 is a compact and high-performance Wi-Fi 6 AX1800 ceiling-mounted access point designed for small to medium-sized businesses, hotels, offices, restaurants, cafés, retail shops, and residential indoor networks. Built with advanced IEEE 802.11ax (Wi-Fi 6) technology, it delivers combined wireless speeds of up to 1774Mbps, ensuring stable, fast, and efficient connectivity for multiple users simultaneously. It is an ideal solution for environments that need reliable internet performance with easy installation and cloud-based management.
The device uses dual-band 2×2 MU-MIMO architecture, supporting 573Mbps on 2.4GHz and 1201Mbps on 5GHz, which improves data efficiency and reduces congestion in busy network environments. With OFDMA and Wi-Fi 6 scheduling technology, it can serve multiple clients at the same time with lower latency and better stability, making it suitable for modern high-device-density usage.

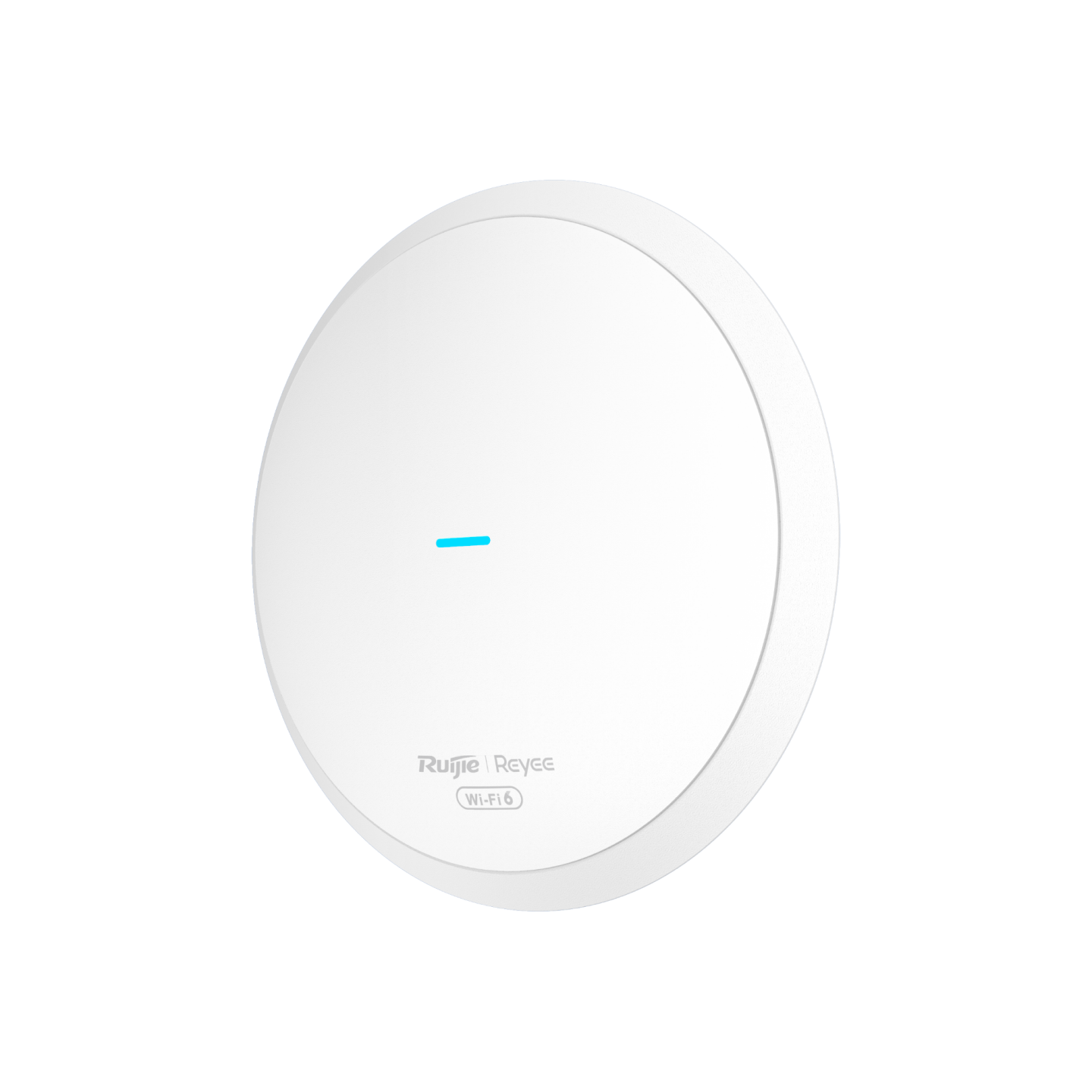

The RG-RAP62 features a minimalist circular ceiling design, making it easy to blend into modern interiors such as hotel rooms or office ceilings. Its compact lightweight body and simple mounting system allow fast installation, reducing deployment time for IT teams and installers. The built-in omnidirectional antennas ensure stable coverage across indoor spaces with consistent signal distribution.
It supports Reyee Mesh networking, Ruijie Cloud centralized management, AI-powered wireless optimization (WIO), and remote monitoring, allowing administrators to manage the entire network from anywhere without complex controllers. This makes it a very practical solution for scalable business Wi-Fi deployments.
| Specification | Details |
|---|---|
| Product Model | RG-RAP62 |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Wireless Technology | AX1800 |
| Maximum Wireless Speed | 1774 Mbps (Ruijie Reyee) |
| 2.4GHz Speed | 573 Mbps (Ruijie Reyee) |
| 5GHz Speed | 1201 Mbps (Ruijie Reyee) |
| MIMO Technology | 2×2 MU-MIMO (Dual Band) |
| Radio Design | Dual-radio, 4 spatial streams |
| Antenna Type | Built-in Omnidirectional Antennas |
| Ethernet Port | 1 × Gigabit RJ45 |
| Power Supply | PoE / PoE+ / DC 12V |
| Maximum Power Consumption | ≤ 12.95W (Ruijie Reyee) |
| Maximum Clients | Up to 256 users (Root IT Support) |
| Managed Devices Capacity | Up to 300 |
| Cloud Management | Supported |
| Mesh Networking | Supported |
| AI Optimization (WIO) | Supported |
| Portal Authentication | Supported |
| IPv6 Support | Yes |
| Mounting Type | Ceiling / Wall |
| Operating Temperature | 0°C to 40°C (Ruijie Reyee) |
| Protection Rating | IP41 |
| Dimensions | Ø175 × 39 mm (Ruijie Reyee) |
| Weight | ≤ 0.4 kg (Ruijie Reyee) |
| Color | White |
