Description
The Ruijie Reyee RG-EST330F-P is a high-performance outdoor wireless bridge designed for long-range point-to-point (PTP) and point-to-multipoint (PTMP) wireless transmission. Built with advanced Wi-Fi 5 (802.11ac) technology, it delivers ultra-fast wireless speeds of up to 867Mbps on 5GHz, making it an ideal solution for CCTV surveillance backhaul, building-to-building networking, remote site connectivity, industrial networking, tower crane communication, campus deployments, and outdoor enterprise networking applications.
Engineered with 2×2 MIMO technology and a powerful 13dBi directional antenna, the RG-EST330F-P provides stable and efficient signal transmission over distances of up to 3 kilometers in ideal conditions. Its proprietary TDMA protocol significantly improves signal stability and reduces interference, ensuring reliable performance even in busy wireless environments.
The device features dual PoE output ports, allowing direct power delivery to IP cameras and other PoE-enabled devices, which reduces installation complexity and lowers deployment costs. With three flexible power input options including 12V DC, Passive PoE, and IEEE 802.3af/at, deployment becomes highly versatile across multiple outdoor scenarios.
Designed for harsh outdoor environments, the RG-EST330F-P features IP55 weatherproof protection, advanced lightning and ESD protection, and operates reliably under extreme temperatures. Combined with Ruijie Cloud centralized management, AI-powered bridge alignment, and intelligent network optimization tools, this wireless bridge ensures simplified deployment, monitoring, and maintenance for professional-grade outdoor networking.
| Specification | Details |
|---|---|
| Product Model | RG-EST330F-P |
| Product Type | Outdoor Wireless Bridge |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 (Wi-Fi 5) |
| Wireless Speed (5GHz) | Up to 867 Mbps |
| Wireless Speed (2.4GHz Mgmt) | Up to 150 Mbps |
| Wireless Technology | 2×2 MIMO |
| Recommended Distance | Up to 3 KM |
| Operating Modes | Point-to-Point / Point-to-Multipoint |
| Supported CPE Connections | Up to 5 |
| Frequency Range | 5.15GHz – 5.85GHz / 2.4GHz Mgmt Radio |
| Antenna Gain | 13 dBi Directional Antenna |
| Polarization Angle | Horizontal 30° / Vertical 30° |

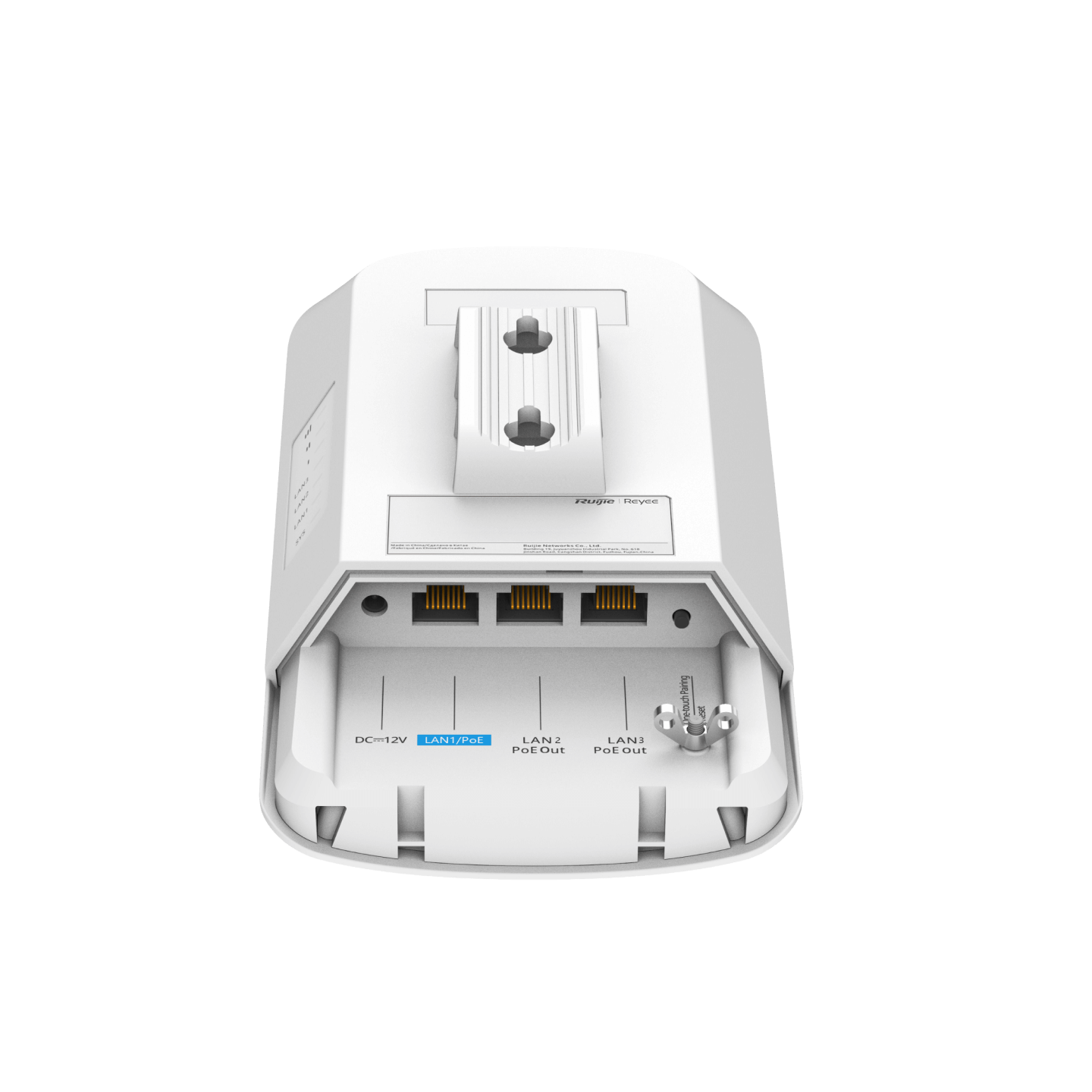

| Ports | 3 × 10/100Base-T RJ45 |
| PoE Output Ports | 2 × PoE Out |
| PoE Standard | IEEE 802.3af/at |
| PoE Output Budget | 15.4W Total |
| Power Input Options | 12V DC / 24V Passive PoE / 802.3af/at |
| TDMA Support | Yes |
| Cloud Management | Supported |
| Bridge Alignment Tool | Supported |
| AI Heatmap | Supported |
| Spectrum Analysis | Supported |
| Security | WPA2-PSK |
| Lightning Protection | ±6KV |
| ESD Protection | 15KV |
| Ingress Protection | IP55 |
| Power Consumption | <9W (without PoE Out), <24.4W (with PoE Out) |
| Operating Temperature | -30°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 198.8 × 102 × 53.4 mm |
| Weight | 370g |
| Mounting Type | Pole Mount / Wall Mount |
| Certification | CE |
