Description
The Ruijie Reyee RG-RAP2260(G) is a high-performance enterprise-grade Wi-Fi 6 (802.11ax) dual-band ceiling-mounted access point designed for hotels, offices, schools, hospitals, retail stores, and medium to high-density indoor wireless environments. It delivers a combined wireless throughput of up to 2976Mbps (AX3000 class), ensuring fast, stable, and low-latency connectivity for multiple users simultaneously. This makes it ideal for modern business networks where seamless roaming, high capacity, and reliable coverage are essential.
The device supports dual-band 2×2 MU-MIMO technology, offering 574Mbps on 2.4GHz and 2402Mbps on 5GHz, allowing efficient bandwidth distribution and improved performance in crowded environments. With Wi-Fi 6 features such as OFDMA and MU-MIMO, it significantly reduces network congestion and improves multi-user efficiency, making it suitable for high-device-density applications.

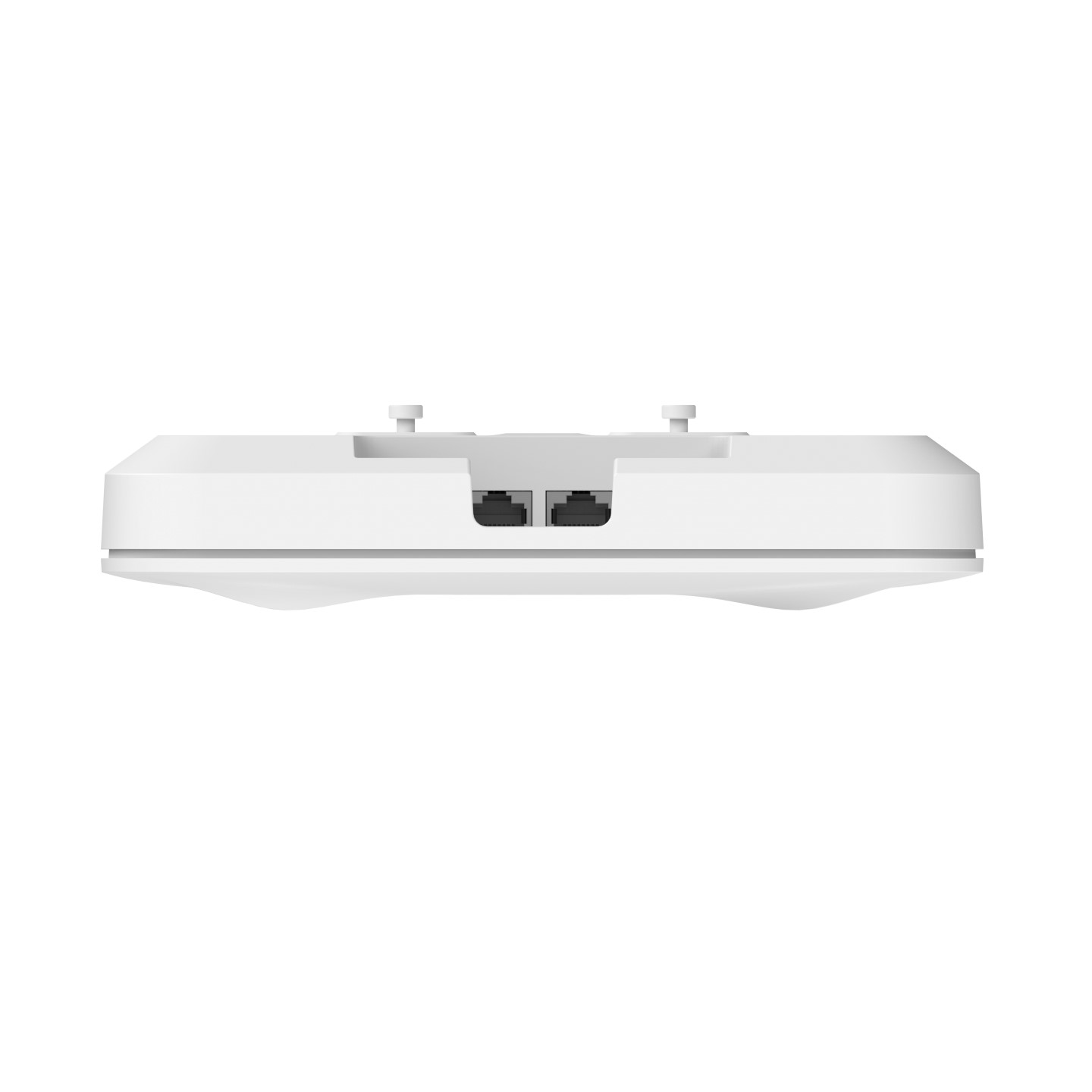

The RG-RAP2260(G) comes with a compact ceiling-mount design that blends into modern interiors while providing strong and stable omnidirectional coverage. Its built-in antennas and optimized RF design ensure consistent signal distribution across rooms, corridors, and open indoor spaces, making it highly effective for structured enterprise deployments.
It also supports Ruijie Reyee Cloud management, Reyee Mesh networking, Layer 3 roaming, and intelligent RF optimization, enabling centralized monitoring and easy deployment without requiring a physical controller. This makes it a flexible and scalable solution for professional IT environments.
| Specification | Details |
|---|---|
| Product Model | RG-RAP2260(G) |
| Product Type | Ceiling Mount Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wireless Technology | AX3000 Dual-Band |
| Maximum Wireless Speed | 2976 Mbps |
| 2.4GHz Speed | 574 Mbps |
| 5GHz Speed | 2402 Mbps |
| MIMO Technology | 2×2 MU-MIMO (Dual Band) |
| Radio Design | Dual-radio |
| Spatial Streams | 4 Streams |
| Antenna Type | Built-in Omnidirectional Antennas |
| Antenna Gain | ~3 dBi (each band) |
| Ethernet Ports | 1 × Gigabit Ethernet (PoE In) |
| Power Supply | PoE / 802.3at + DC 12V |
| Maximum Power Consumption | ≤ 15–17W |
| Maximum Clients | Up to 512 users |
| Cloud Management | Supported |
| Reyee Mesh | Supported |
| Roaming Support | Layer 3 roaming |
| Operating Mode | AP / Router Mode |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions | 194 × 194 × 35 mm |
| Weight | ~0.5–0.6 kg |
