Description

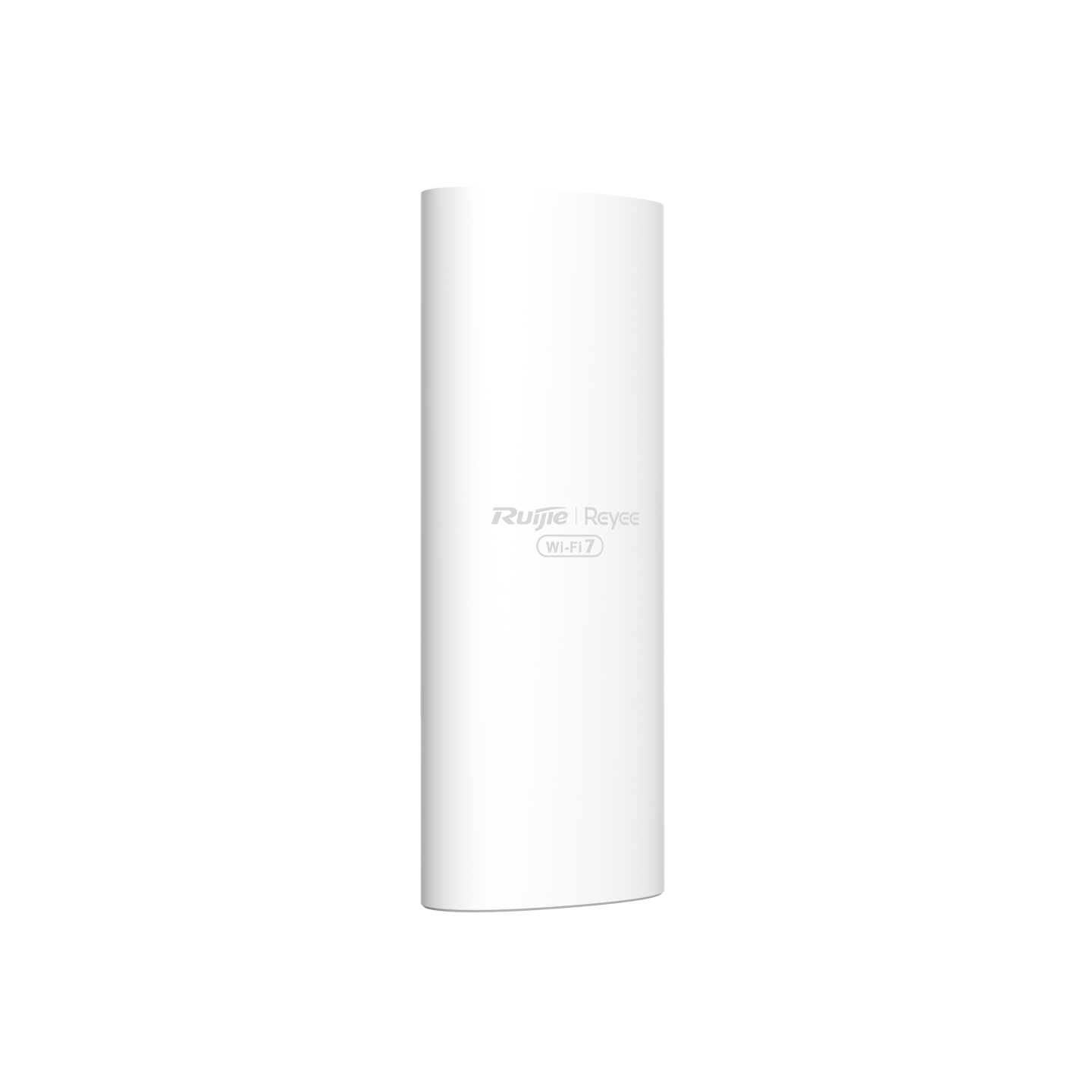

The Ruijie Reyee RG-RAP72PRO-OD is a premium Wi-Fi 7 BE5040 indoor/outdoor versatile access point built for next-generation wireless performance in hotels, restaurants, resorts, outdoor cafés, luxury villas, conference spaces, commercial buildings, swimming pool areas, corridors, and enterprise-grade outdoor wireless deployments. Powered by the latest IEEE 802.11be (Wi-Fi 7) technology, this access point delivers blazing-fast combined wireless speeds of up to 5011Mbps, ensuring seamless performance for 8K streaming, cloud applications, high-density user access, smart business operations, and ultra-low latency wireless connectivity. It is designed for organizations seeking cutting-edge wireless infrastructure with outdoor durability and enterprise-level management.
The device features a powerful dual-band 5 spatial stream architecture, including 2×2 MU-MIMO on 2.4GHz and 3×3 MU-MIMO on 5GHz, delivering highly efficient wireless traffic optimization for multiple simultaneous users. Advanced Wi-Fi 7 technologies such as Multi-Link Operation (MLO), 4K-QAM modulation, and Preamble Puncturing significantly improve throughput, reduce latency, and maximize channel efficiency even in interference-heavy environments. Independent testing highlights Wi-Fi 7’s ability to reduce packet loss and lower latency dramatically under congestion.
The RG-RAP72PRO-OD comes equipped with one 2.5GbE multi-gigabit uplink port, eliminating wired bottlenecks and allowing full utilization of Wi-Fi 7 wireless capacity. With PoE/PoE+ support, deployment becomes highly flexible for modern enterprise installations without requiring local DC adapters. The slim and elegant design ensures discreet professional deployment across both indoor and outdoor spaces.
Built for harsh environments, the device offers IP65-rated weatherproof protection, ensuring stable operation under rain, dust, humidity, and extreme temperatures ranging from -30°C to +65°C. Combined with Reyee Mesh networking, AI-powered WIO 3 optimization, standalone captive portal, heatmap-assisted deployment visualization, and Ruijie Cloud centralized management, the RG-RAP72PRO-OD simplifies installation, optimization, and remote monitoring for professional network administrators. Community feedback generally praises Reyee hardware for being reliable, affordable, and highly competitive against premium enterprise alternatives.
| Specification | Details |
|---|---|
| Product Model | RG-RAP72PRO-OD |
| Product Type | Indoor/Outdoor Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless Technology | Wi-Fi 7 (BE5040) |
| Frequency Bands | Dual-Band (2.4GHz + 5GHz) |
| Maximum Wireless Speed | 5011 Mbps |
| 2.4GHz Speed | 688 Mbps |
| 5GHz Speed | 4323 Mbps |
| 6GHz Support | No |
| Radio Design | Dual-radio |
| Spatial Streams | 5 Streams |
| MIMO Technology | 2×2 (2.4GHz), 3×3 (5GHz) MU-MIMO |
| Channel Width | Up to 320MHz |
| Modulation | 4K-QAM |
| Multi-Link Operation (MLO) | Supported |
| Preamble Puncturing | Supported |
| Antenna Type | Built-in Omnidirectional |
| Ethernet Ports | 1 × 2.5GbE RJ45 |
| Power Supply | PoE / PoE+ |
| Maximum Power Consumption | ≤21W |
| Maximum Wireless Clients | 511 Clients |
| Managed Device Capacity | Up to 300 Devices |
| Cloud Management | Supported |
| Reyee Mesh | Supported |
| WIO 3 Optimization | Supported |
| Portal Authentication | Supported |
| Heatmap Visualization | Supported |
| IPv6 Support | Yes |
| Mounting Options | Wall / Pole Mount |
| Protection Rating | IP65 |
| Operating Temperature | -30°C to +65°C |
| Dimensions | 90 × 46 × 239 mm |
| Weight | ≤0.7kg |
| Color | White |
| Certification | CE / FCC / RoHS |
